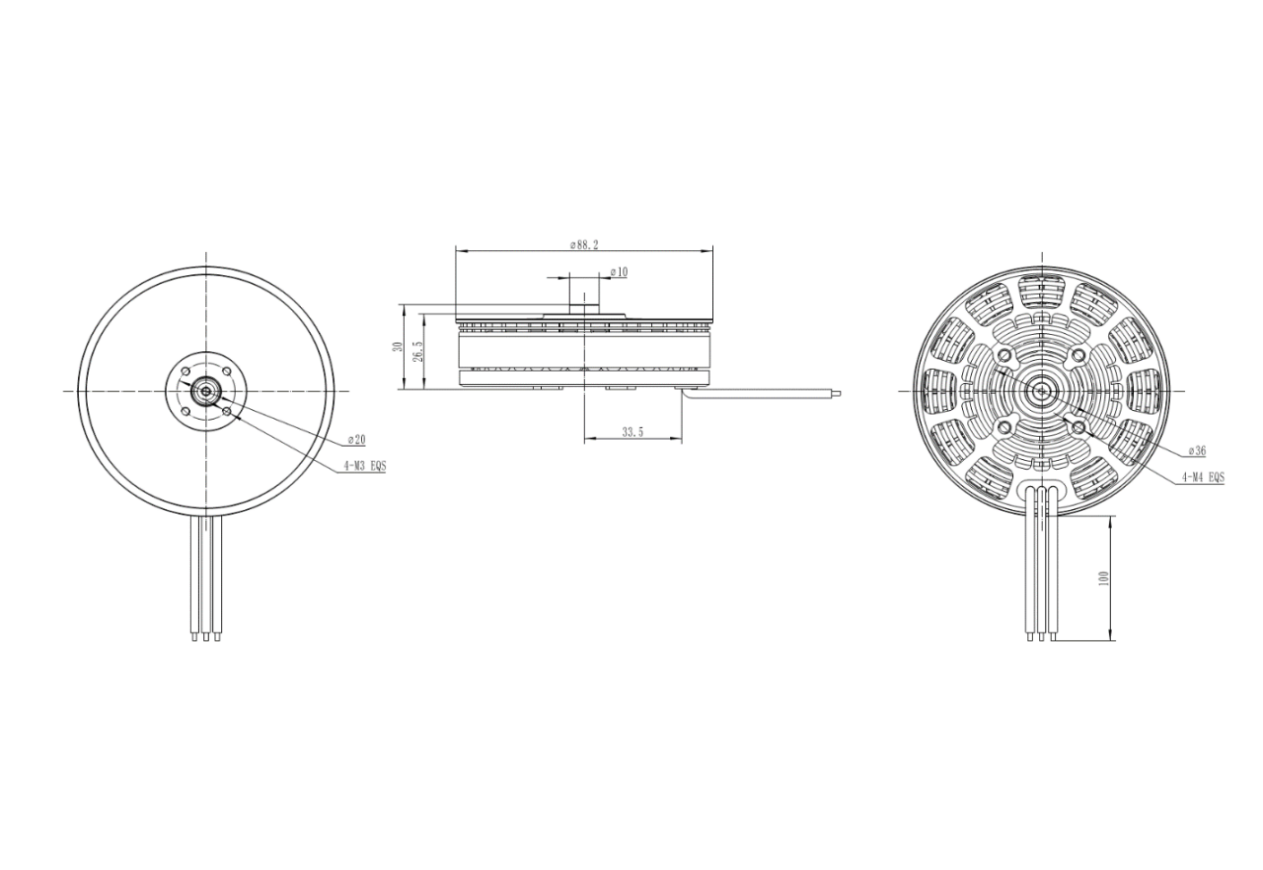

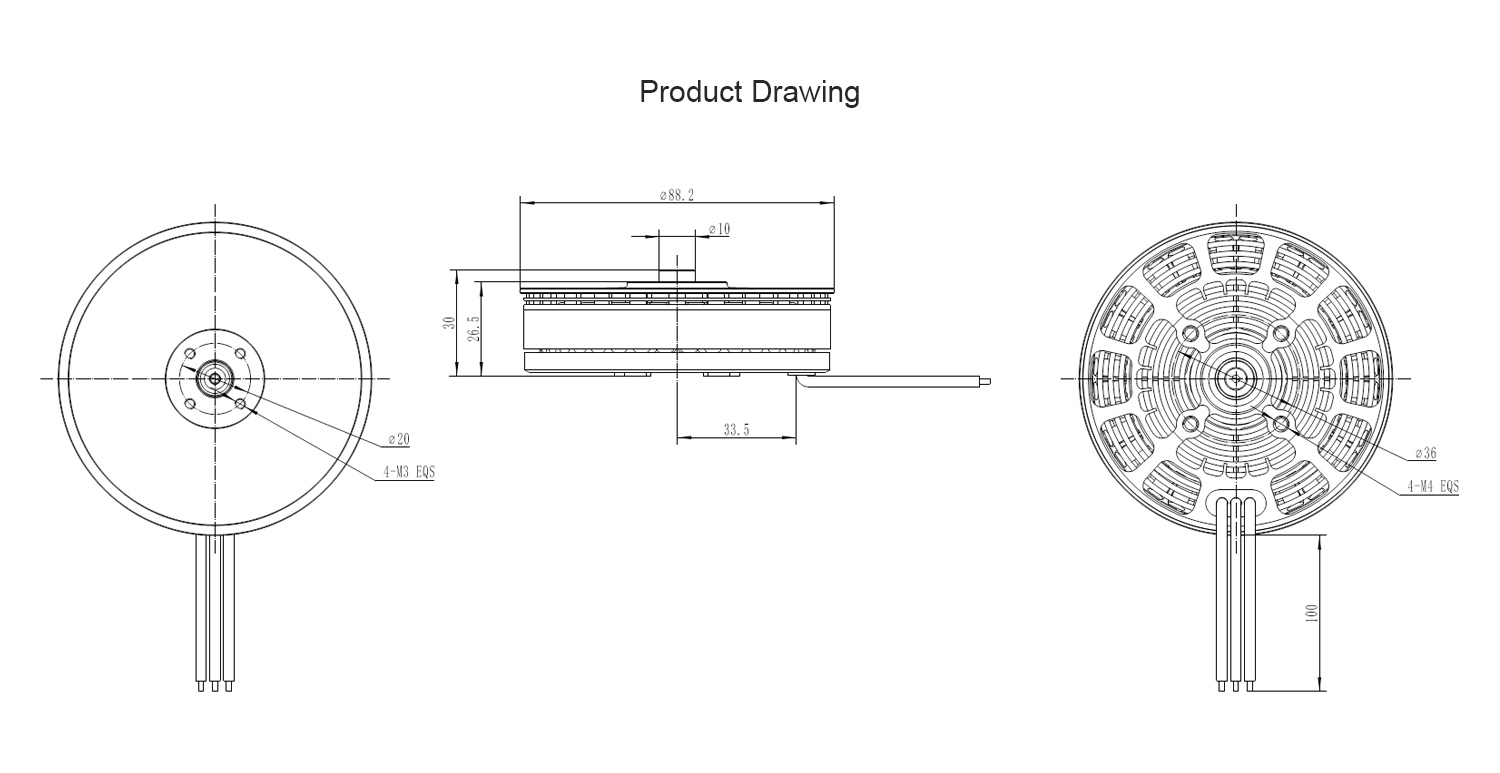

CAD

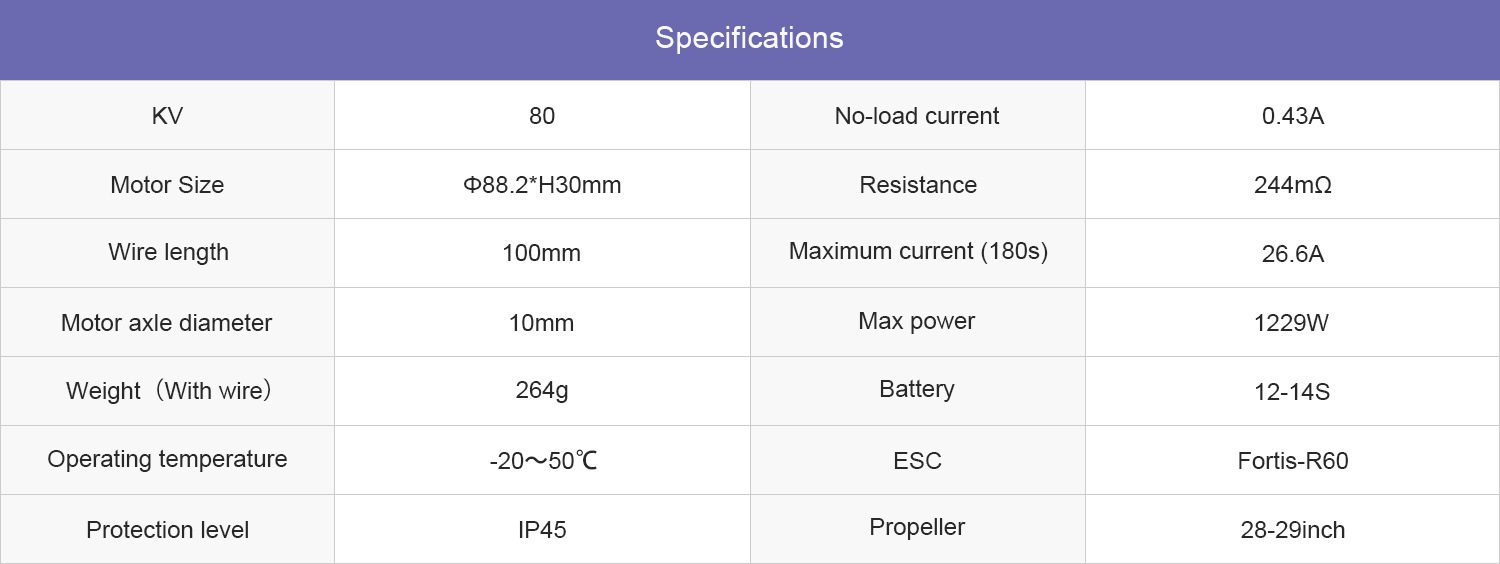

| Specifications | |
| Motor Size | Φ88.2*H30mm |
| Motor axle diameter | 10mm |
| Operating temperature | -20～50℃ |
| Wire length | 100mm |
| Protection level | IP45 |
| KV | 80 |
| Weight（With wire） | 264g |
| No-load current | 0.43A |
| Resistance | 20mΩ |
| Maximum current (180s) | 20.8A |
| Max power | 277W |
| Battery | 12-14S |
| ESC | Fortis-R60 |

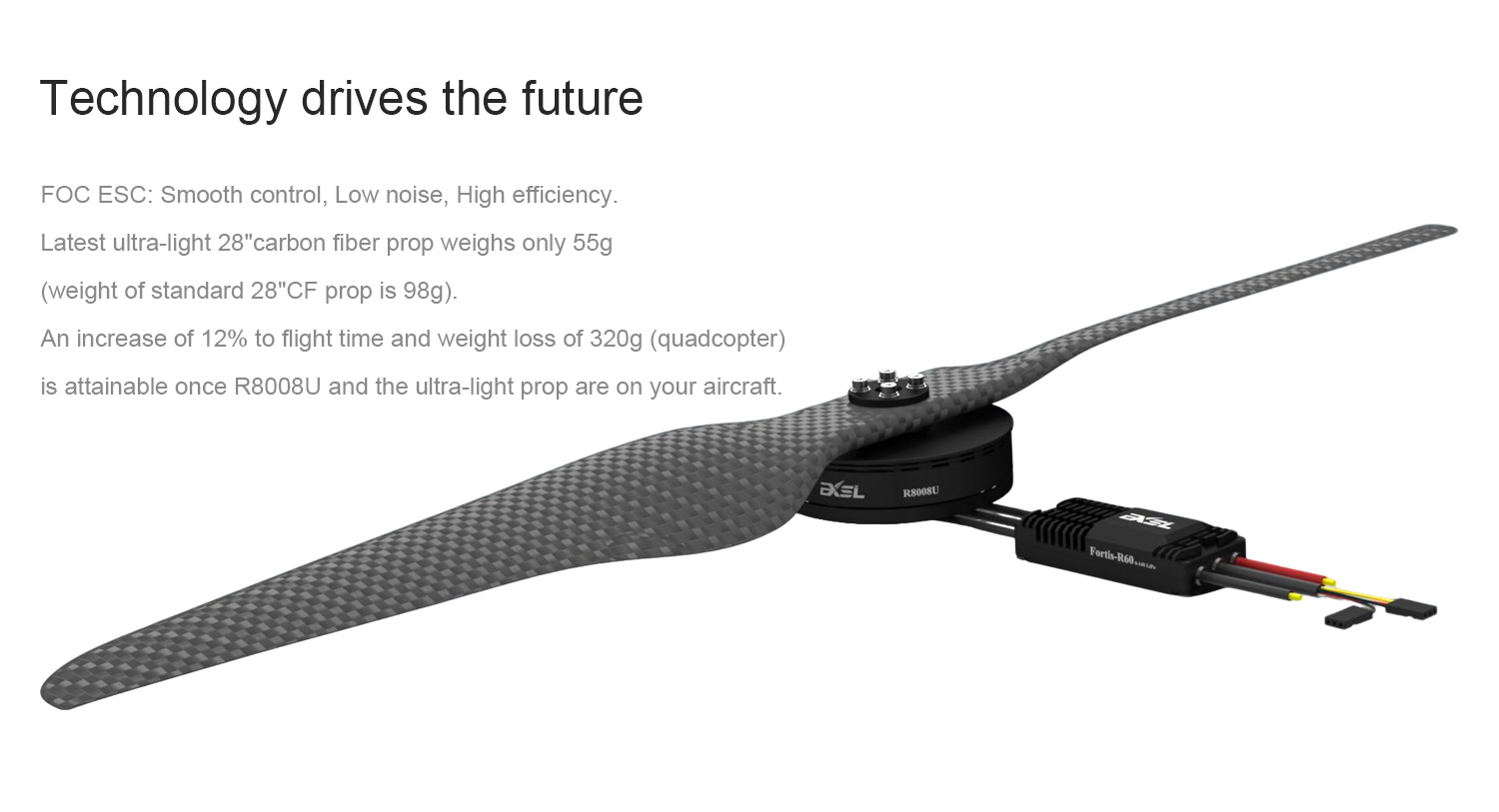

| Propeller | 28-29inch |
| Technical Parameters | ||||||||
| Throttle[%] | Voltage[V] | Current[A] | Power Input[W] | Power Output[W] | Torque[Nm] | Speed[rpm] | Thrust[g] | Efficiency[g/W] |
| 40 | 53.9 | 2.70 | 145.4 | 117.69 | 0.73 | 1550 | 1977 | 13.61 |
| 42 | 53.8 | 3.10 | 166.7 | 135.88 | 0.80 | 1615 | 2211 | 13.37 |
| 44 | 53.8 | 3.46 | 186.1 | 151.02 | 0.87 | 1667 | 2347 | 12.62 |
| 46 | 53.7 | 3.76 | 202.0 | 165.57 | 0.91 | 1731 | 2513 | 12.45 |
| 48 | 53.7 | 4.24 | 227.6 | 184.84 | 0.98 | 1793 | 2703 | 11.88 |
| 50 | 53.7 | 4.66 | 250.3 | 204.39 | 1.05 | 1854 | 2892 | 11.56 |
| 52 | 53.7 | 5.17 | 277.5 | 226.95 | 1.13 | 1915 | 3103 | 11.18 |
| 54 | 53.7 | 5.65 | 303.2 | 246.57 | 1.19 | 1976 | 3299 | 10.89 |
| 56 | 53.7 | 6.06 | 325.3 | 265.28 | 1.25 | 2024 | 3447 | 10.59 |
| 58 | 53.6 | 6.52 | 349.7 | 285.28 | 1.31 | 2073 | 3617 | 10.35 |
| 60 | 53.6 | 7.06 | 378.2 | 309.04 | 1.38 | 2131 | 3817 | 10.10 |
| 62 | 53.5 | 7.70 | 412.3 | 336.38 | 1.47 | 2188 | 4042 | 9.81 |
| 64 | 53.6 | 8.36 | 447.8 | 363.47 | 1.55 | 2244 | 4259 | 9.51 |
| 66 | 53.5 | 8.98 | 480.6 | 390.62 | 1.62 | 2297 | 4469 | 9.30 |
| 68 | 53.5 | 9.59 | 512.9 | 413.90 | 1.69 | 2341 | 4656 | 9.08 |
| 70 | 53.5 | 10.30 | 550.7 | 441.10 | 1.76 | 2394 | 4878 | 8.86 |
| 75 | 53.4 | 12.17 | 649.8 | 516.45 | 1.96 | 2521 | 5414 | 8.33 |
| 80 | 53.3 | 14.16 | 754.9 | 593.71 | 2.14 | 2644 | 5957 | 7.90 |
| 90 | 53.1 | 18.69 | 992.3 | 766.64 | 2.55 | 2872 | 7051 | 7.11 |
| 100 | 53.0 | 21.92 | 1161.4 | 871.57 | 2.78 | 2998 | 8800 | 7.58 |
