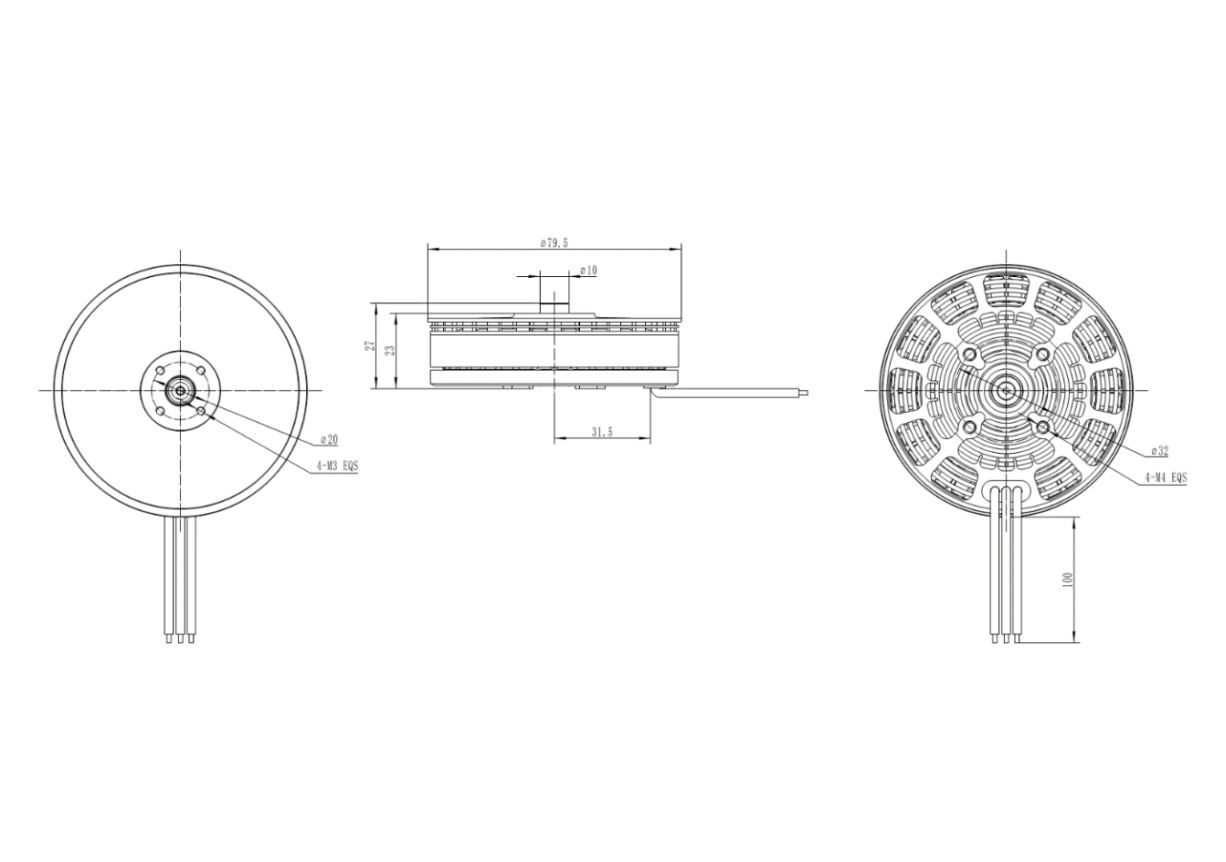

CAD
| Specifications | |
| Motor Size | Φ79.5*H27mm |
| Motor axle diameter | 10mm |
| Operating temperature | -20～50℃ |
| Wire length | 100mm |
| Protection level | IP45 |
| KV | 115 |
| Weight（With wire） | 230g |
| No-load current | 0.5A |
| Resistance | 288mΩ |
| Maximum current (180s) | 15A |
| Max power | 194W |
| Battery | 6-12S |
| ESC | Fortis-R60 |
| Propeller | 26-27inch |
| Technical Parameters | ||||||||
| Throttle[%] | Voltage[V] | Current[A] | Power Input[W] | Power Output[W] | Torque[Nm] | Speed[rpm] | Thrust[g] | Efficiency[g/W] |
| 40 | 47.83 | 2.02 | 97 | 78.5 | 0.38 | 1972 | 1322 | 13.64 |
| 42 | 47.81 | 2.19 | 105 | 87.2 | 0.41 | 2032 | 1408 | 13.4 |
| 44 | 47.78 | 2.45 | 117 | 98.7 | 0.44 | 2142 | 1513 | 12.89 |
| 46 | 47.77 | 2.64 | 126 | 106.3 | 0.46 | 2207 | 1606 | 12.7 |
| 48 | 47.74 | 2.88 | 138 | 114.8 | 0.48 | 2284 | 1707 | 12.4 |
| 50 | 47.72 | 3.13 | 150 | 126.2 | 0.51 | 2364 | 1807 | 12.05 |
| 52 | 47.69 | 3.51 | 168 | 141.7 | 0.55 | 2460 | 1947 | 11.6 |
| 54 | 47.67 | 3.82 | 183 | 154.4 | 0.58 | 2542 | 2068 | 11.3 |
| 56 | 47.64 | 4.05 | 194 | 163.7 | 0.6 | 2606 | 2164 | 11.16 |
| 58 | 47.6 | 4.39 | 210 | 180.9 | 0.64 | 2699 | 2280 | 10.87 |
| 60 | 47.58 | 4.73 | 226 | 194.9 | 0.67 | 2778 | 2398 | 10.6 |
| 62 | 47.55 | 5.07 | 243 | 209.3 | 0.7 | 2855 | 2507 | 10.33 |
| 64 | 47.51 | 5.45 | 260 | 223.7 | 0.73 | 2926 | 2627 | 10.08 |
| 66 | 47.48 | 5.82 | 278 | 238.7 | 0.76 | 2999 | 2756 | 9.91 |
| 68 | 47.45 | 6.26 | 299 | 254.4 | 0.79 | 3075 | 2888 | 9.65 |
| 70 | 47.41 | 6.71 | 320 | 272.6 | 0.83 | 3136 | 3014 | 9.4 |
| 75 | 47.33 | 7.90 | 377 | 318.5 | 0.91 | 3343 | 3346 | 8.87 |
| 80 | 47.21 | 8.83 | 421 | 356.5 | 0.98 | 3474 | 3605 | 8.56 |
| 90 | 46.97 | 11.29 | 537 | 448.6 | 1.14 | 3758 | 4224 | 7.86 |
| 100 | 46.72 | 14.07 | 669 | 558.1 | 1.32 | 4038 | 4783 | 7.15 |
