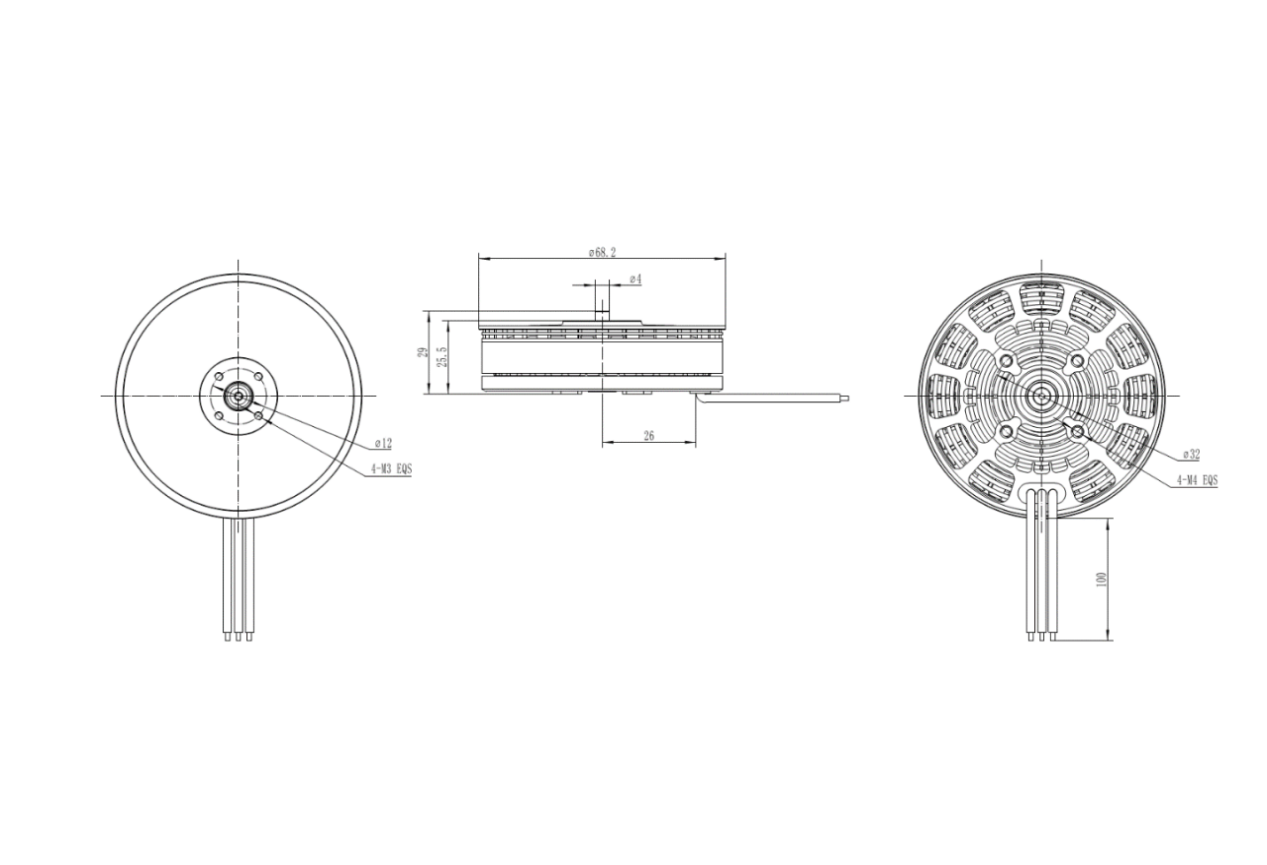

CAD
| Specifications | |
| Motor Size | Φ68.2*H29mm |
| Motor axle diameter | 4mm |
| Operating temperature | -20～50℃ |
| Wire length | 100mm |
| Protection level | IP45 |
| KV | 160 |
| Weight（With wire） | 223g |
| No-load current | 0.5A |
| Resistance | 178mΩ |
| Maximum current (180s) | 23.78A |
| Max power | 314W |
| Battery | 6-12S |
| ESC | Fortis-R60 |
| Propeller | 21-22inch |
| Technical Parameters | ||||||||
| Throttle[%] | Voltage[V] | Current[A] | Power Input[W] | Power Output[W] | Torque[Nm] | Speed[rpm] | Thrust[g] | Efficiency[g/W] |
| 40 | 47.72 | 2.64 | 126 | 101 | 0.33 | 2930 | 1444 | 11.45 |
| 42 | 47.71 | 2.95 | 141 | 115 | 0.36 | 3047 | 1563 | 11.12 |
| 44 | 47.72 | 3.38 | 161 | 135 | 0.4 | 3226 | 1760 | 10.93 |
| 46 | 47.69 | 3.78 | 180 | 150 | 0.43 | 3322 | 1875 | 10.41 |
| 48 | 47.67 | 4.17 | 199 | 165 | 0.46 | 3426 | 2006 | 10.08 |
| 50 | 47.66 | 4.52 | 215 | 177 | 0.48 | 3521 | 2125 | 9.87 |
| 52 | 47.66 | 4.88 | 233 | 193 | 0.51 | 3621 | 2249 | 9.67 |
| 54 | 47.64 | 5.26 | 251 | 206 | 0.53 | 3709 | 2355 | 9.39 |
| 56 | 47.63 | 5.68 | 270 | 224 | 0.56 | 3812 | 2488 | 9.2 |
| 58 | 47.63 | 6.15 | 293 | 241 | 0.59 | 3905 | 2624 | 8.96 |
| 60 | 47.61 | 6.6 | 314 | 260 | 0.62 | 4001 | 2762 | 8.78 |
| 62 | 47.6 | 7.09 | 338 | 279 | 0.65 | 4093 | 2892 | 8.57 |
| 64 | 47.59 | 7.61 | 362 | 298 | 0.68 | 4192 | 3030 | 8.36 |
| 66 | 47.58 | 8.19 | 390 | 318 | 0.71 | 4282 | 3160 | 8.11 |
| 68 | 47.57 | 8.45 | 402 | 331 | 0.73 | 4336 | 3243 | 8.07 |
| 70 | 47.56 | 8.97 | 426 | 348 | 0.75 | 4429 | 3388 | 7.94 |
| 80 | 47.49 | 11.99 | 569 | 468 | 0.92 | 4853 | 4118 | 7.23 |
| 90 | 47.42 | 15.57 | 738 | 600 | 1.09 | 5259 | 4889 | 6.62 |
| 100 | 47.31 | 20.67 | 978 | 778 | 1.3 | 5716 | 5838 | 5.97 |
