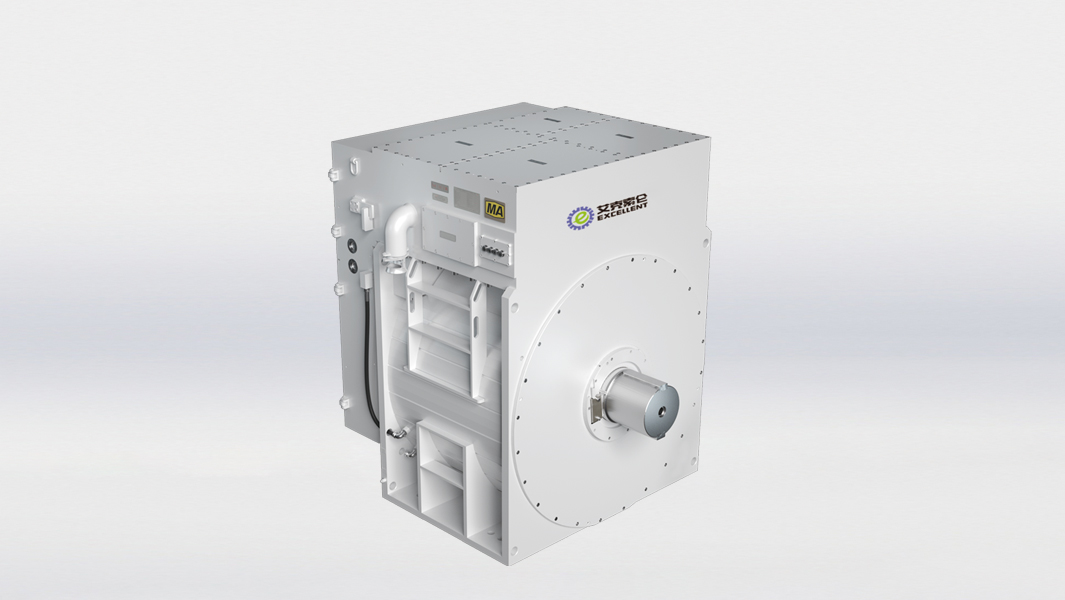

Permanent Magnet Direct Drive Systems>Permanent Magnet Motors>High-voltage permanent magnet synchronous integrated motor
The permanent magnet motor is highly compatible with the high-voltage frequency converter, and can be directly powered by high voltage at 6kV/10kV, eliminating the need for a high-voltage frequency converter and making installation and maintenance more convenient.
| Main technical parameters | |
| Rated voltage | 6kV/10kV |
| Power range | 315kW~1600kW |
| Speed range | 0~300r/min |
| Insulation rating | H level |
| Ingress protection | IP55 |
| Cooling method | Water cooling |
Simple Power Supply System
Direct 6kV/10kV power supply eliminates the need for a mobile substation, simplifying power supply.
Fewer Transmission Components
High ReliabilityEliminating intermediate transmission components such as reducers, couplers, and CSTs results in high system reliability.
High Efficiency and Energy Saving
Meets the CMAC mining variable frequency speed control integrated machine's Level 1 energy efficiency standard, demonstrating significant energy savings.
Maintenance-Free
Achieves gearless permanent magnet direct drive, eliminating the need for on-site maintenance.
No Harmonic Interference
Built-in multiple filtering and harmonic suppression measures eliminate electromagnetic interference, making it suitable for long-distance power supply.
High Level of Intelligence
Features comprehensive data monitoring and protection, supports Huawei Mining Hong system, and meets the needs of smart mine development.
