Industrial innovation drives upgrading：Frequency conversion speed regulation integrated permanent magnet direct drive pulley

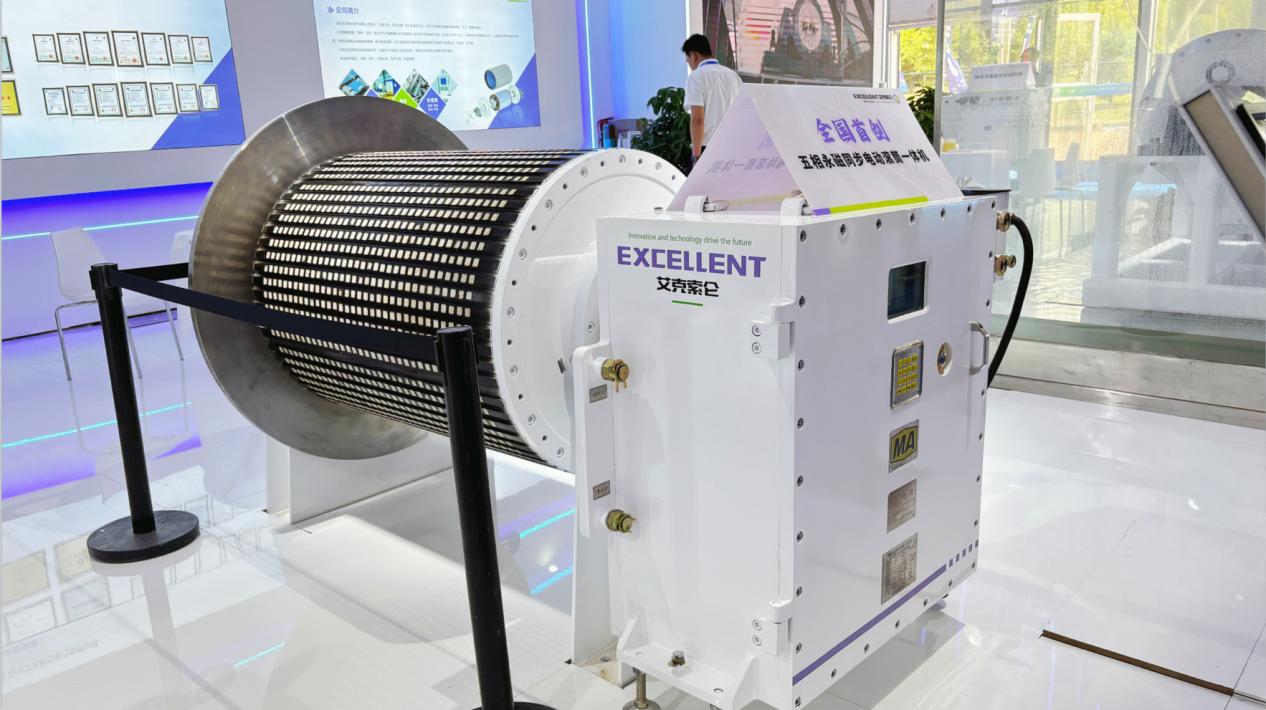

The frequency conversion speed regulation integrated permanent magnet direct drive drum is a new type ofdrive device integrating frequency converter, motor and electrical control, It takes up less space and avoidsinterference caused by long cables, with excellent output performance.

Our core conveying equipment boasts industry-leading technical parameters and adaptability to various operating conditions, providing customers across industries with efficient and stable power solutions.

The equipment's rated voltage covers multiple levels, including 660V/1140V/3300V, and its power range extends from 18.5kW to 710kW. This allows for precise matching of diverse power needs, from light-duty conveying to heavy-duty continuous operation, helping customers achieve an optimal balance between production capacity and energy consumption. In terms of conveying, we support bandwidth adjustment from 650 to 2200mm and belt speed control from 1.0 to 5.0m/s. We can customize personalized conveying solutions based on material characteristics, conveying distance, and production capacity targets, significantly improving operational flexibility.

Regarding reliability and durability, the equipment employs H-class insulation, possessing excellent heat resistance and electrical stability, ensuring long-term continuous operation. Its IP55 protection rating effectively resists dust and foreign object intrusion, making it suitable for complex and harsh working conditions in mining, metallurgy, and building materials industries. Meanwhile, we adopt water-cooling technology to efficiently remove operating heat, avoid damage to core components caused by high temperatures, and further extend the service life of the equipment; coupled with two-quadrant/four-quadrant operating modes, it supports multiple operations such as forward and reverse rotation and braking, meeting the start-stop and speed adjustment needs in complex scenarios, and safeguarding the safe production and efficient operation of our customers.

Enhanced stability:

Shortening the power supply distance between the frequency converter and the permanent magnet drum fundamentally solves the harmonic spike voltage interference problem caused by long power supply cables, extending the service life of the motor insulation.

Smaller footprint:

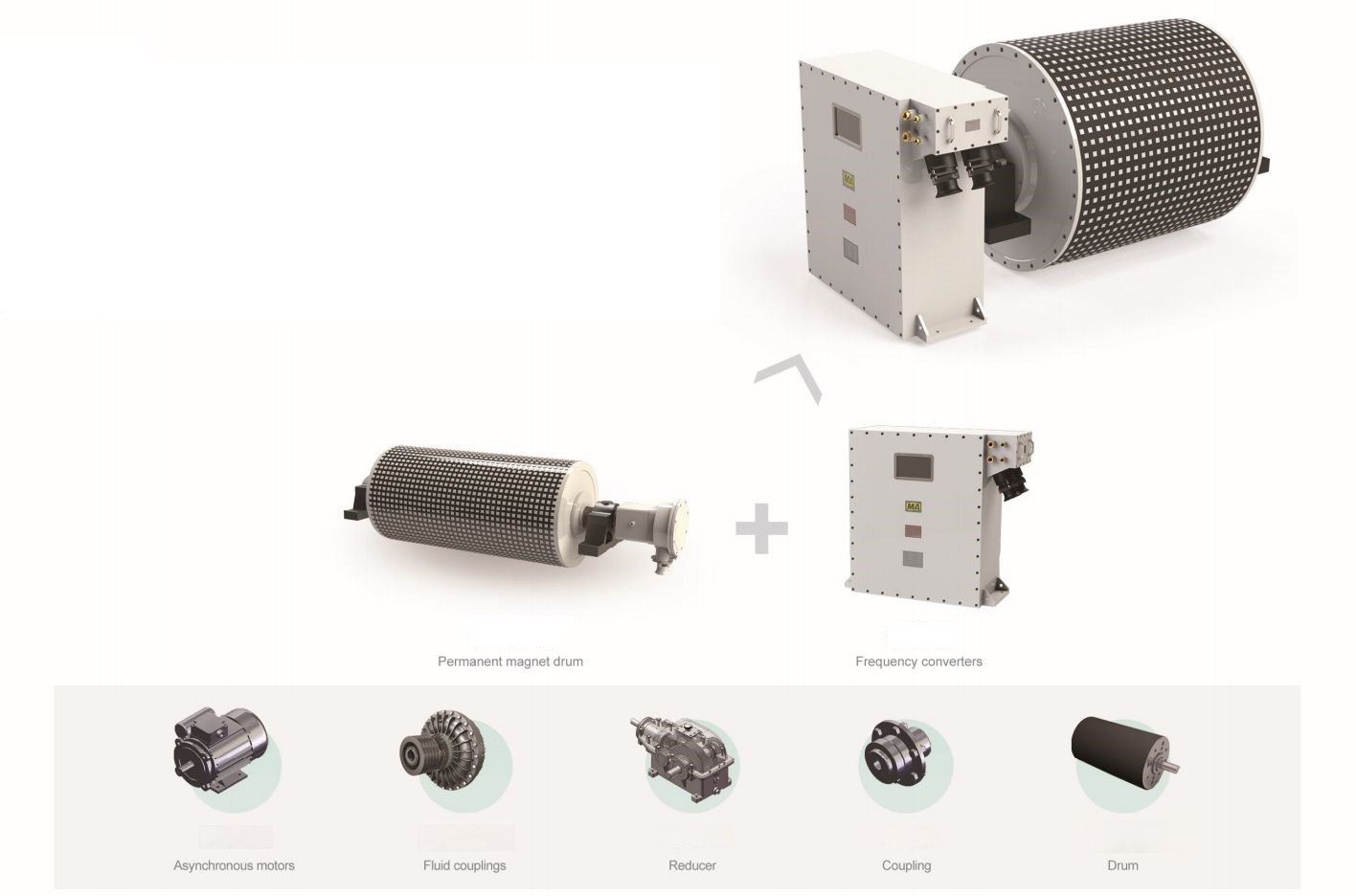

The integrated design of the frequency converter drive and permanent magnet drum results in a simple and compact structure.

Superior electromagnetic compatibility:

The integrated frequency converter speed control permanent magnet drum reduces interference to the power grid and other equipment, leading to more stable system operation.

Wider installation options:

Power cable length is unlimited, suitable for long-distance power supply.
